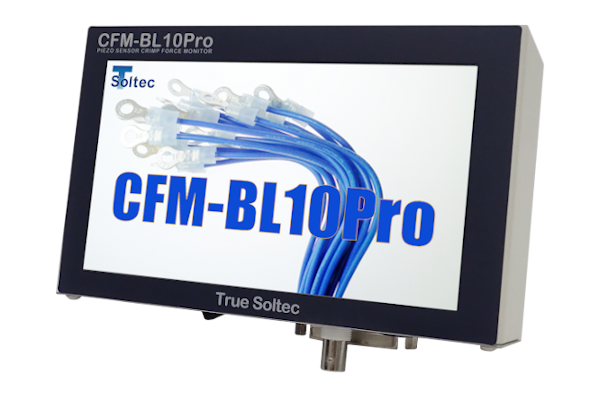

CFM-BL Pro Crimp Force Monitor BL Pro
Product details

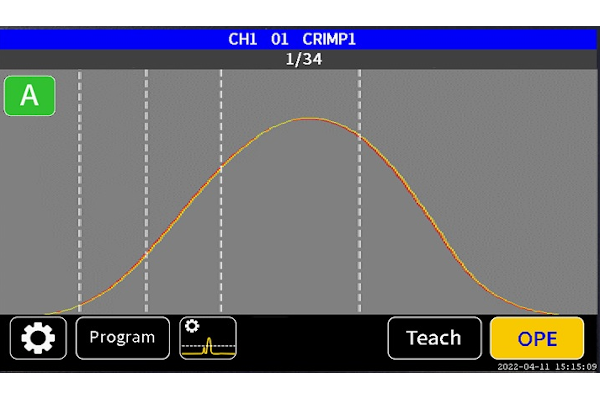

Following the area division judgment method, a new judgment tool that compares the amount of force curve deviation is added up, enabling more accurate judgment.
CFM automatically decides the troublesome task of setting tolerance. Crimp defects are detected with appropriate tolerances for each product.
Built-in part number management function allows for 99 combinations of terminals and wires can be registered.
Memorize the optimal judgment conditions.
