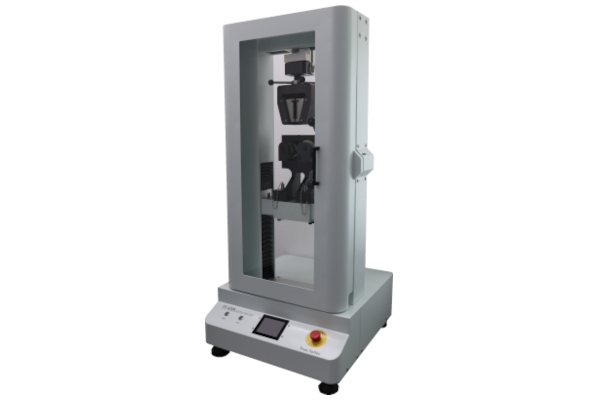

PT-X20K Extra thick wire pull tester
Product details
This is a pull tester dedicated to high-voltage wires such as EV battery cables.
When the terminals are sandwiched between the special jigs and the start button is pressed, the tension is performed automatically.
Safety cover is used on the entire surface.
Maximum tensile load
20,000 N (20 kN)
Adaptive wire size
5 – 120sq
Operation Selectable from Break/Keep Mode
– Registration of up to 16 types of product numbers
– Supports holding force and time settings
– Tolerance can be set
Measurement accuracy
+/- 0.5 R. O
Tension speed can be changed
25 / 50 / 100 / 150 / 200 / 250 / 300 mm/min
